ControlAir I/P Pressure Transducers with worldwide safety approvals from the Official Distributor in Greece CMA D. ARGOUDELIS & CO S.A.

New products

I/P Transducers (Current to Pressure Transducers), also known as I/P Converters, convert a variable electrical signal to a linearly proportional pneumatic output. The pneumatic output is commonly used to apply pneumatic pressure to control valves, actuators, dampeners and louvers clutches and brakes, and web tensioners.

I/P Transducers are offered with extensive combinations of inputs and outputs, industry certifications (FM, CSA, ATEX) and Explosion-proof housings. I/P Transducers are available in various mounting options for space constrained applications. Explosion-proof I/P Transducers deliver reliable high performance for the toughest applications in the most hazardous environments. The NEMA 4X (IP65) housing is designed for both Intrinsically Safe and Explosion-Proof operation.

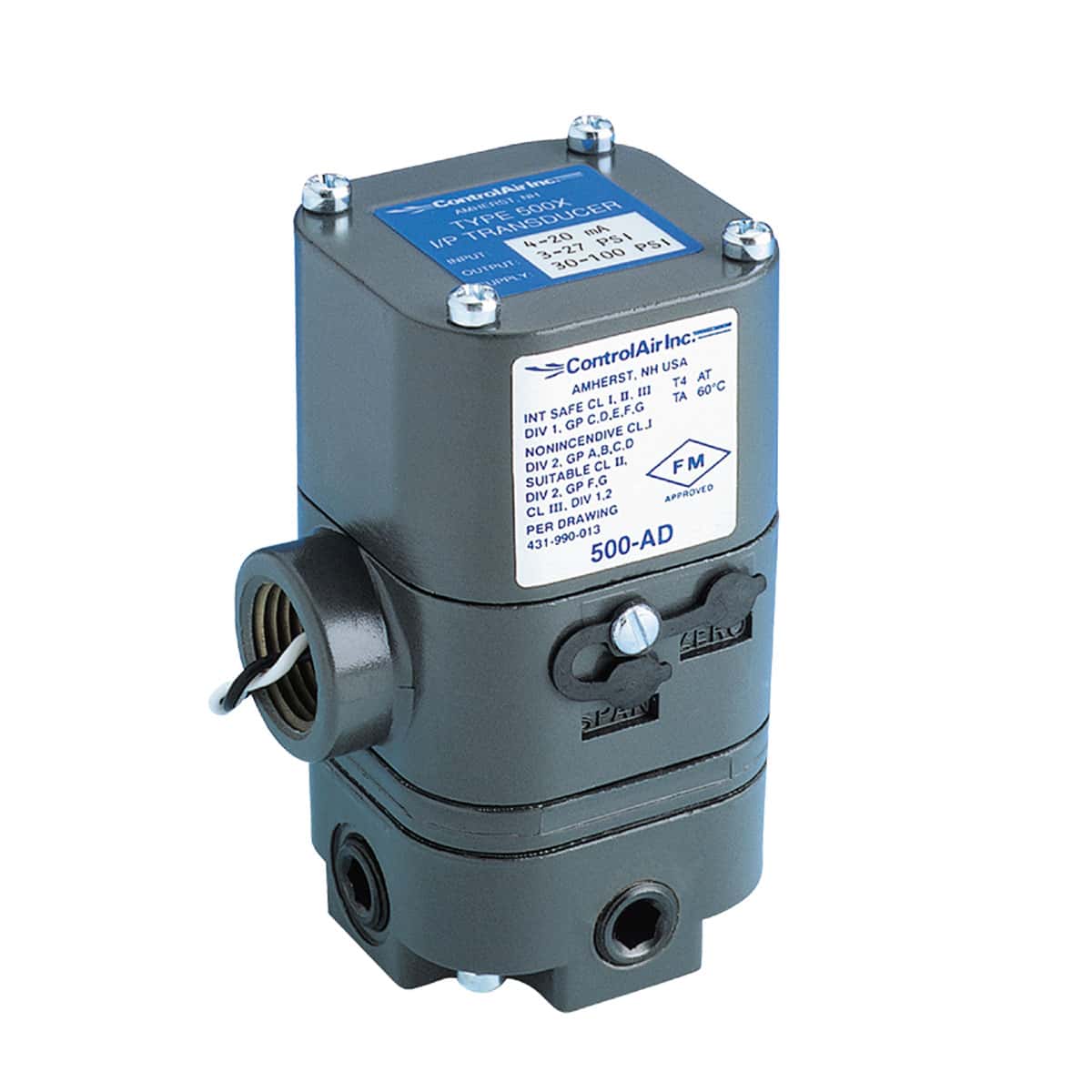

Type 500 Electro-Pneumatic I/P Transducer (I/P, E/P)

The ControlAir Type 500X converts a current or voltage input signal to a linearly proportional pneumatic output pressure. This versatile instrument is designed for control applications that require a high degree of reliability and repeatability at an economical cost.

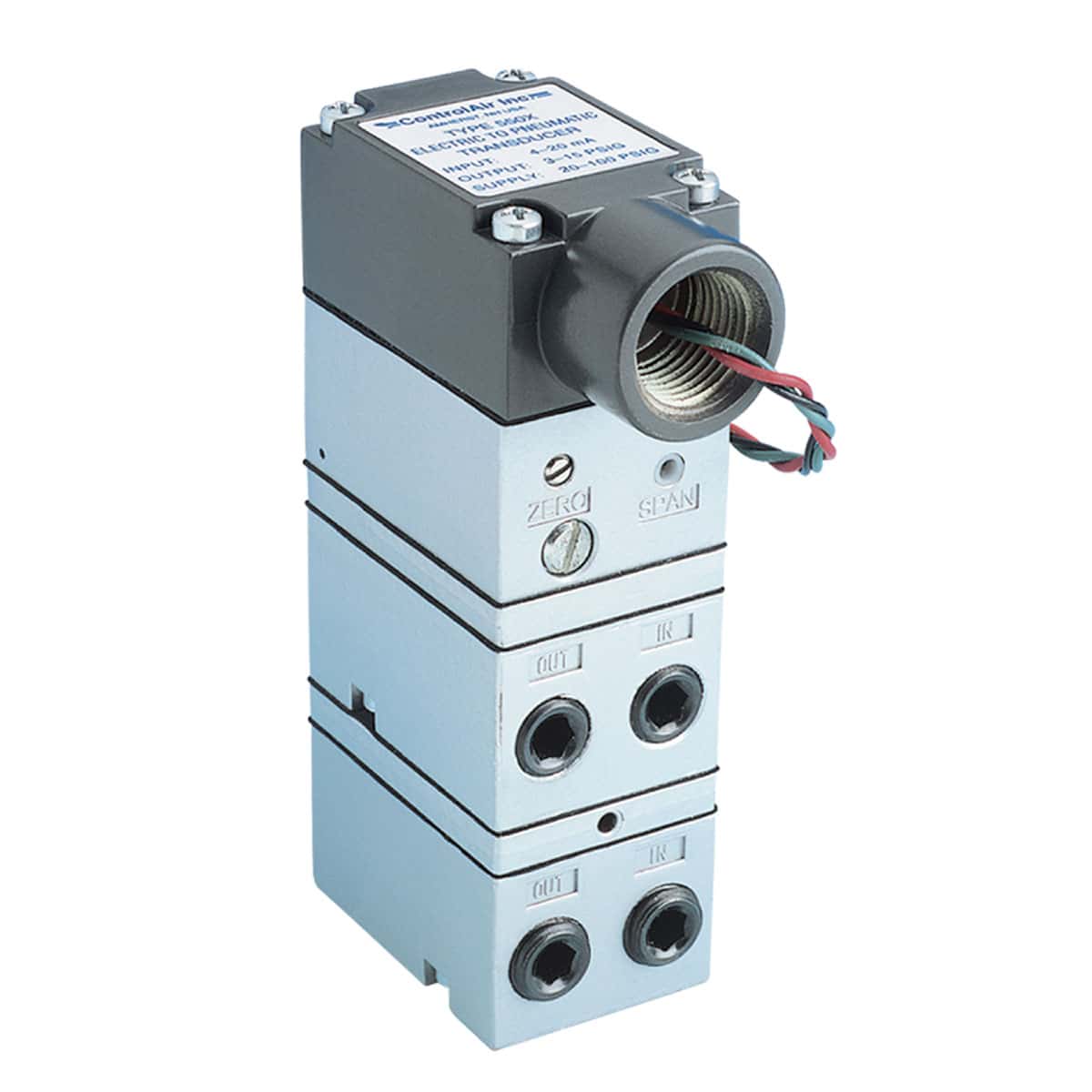

Type 550X I/P, E/P Transducer

The Type 550X is an electronic pressure regulator that converts a variable signal (current or voltage) to a proportional pneumatic output. Its compact housing, accessible ports and easy adjustments provide an ideal answer to applications that are space-constrained.

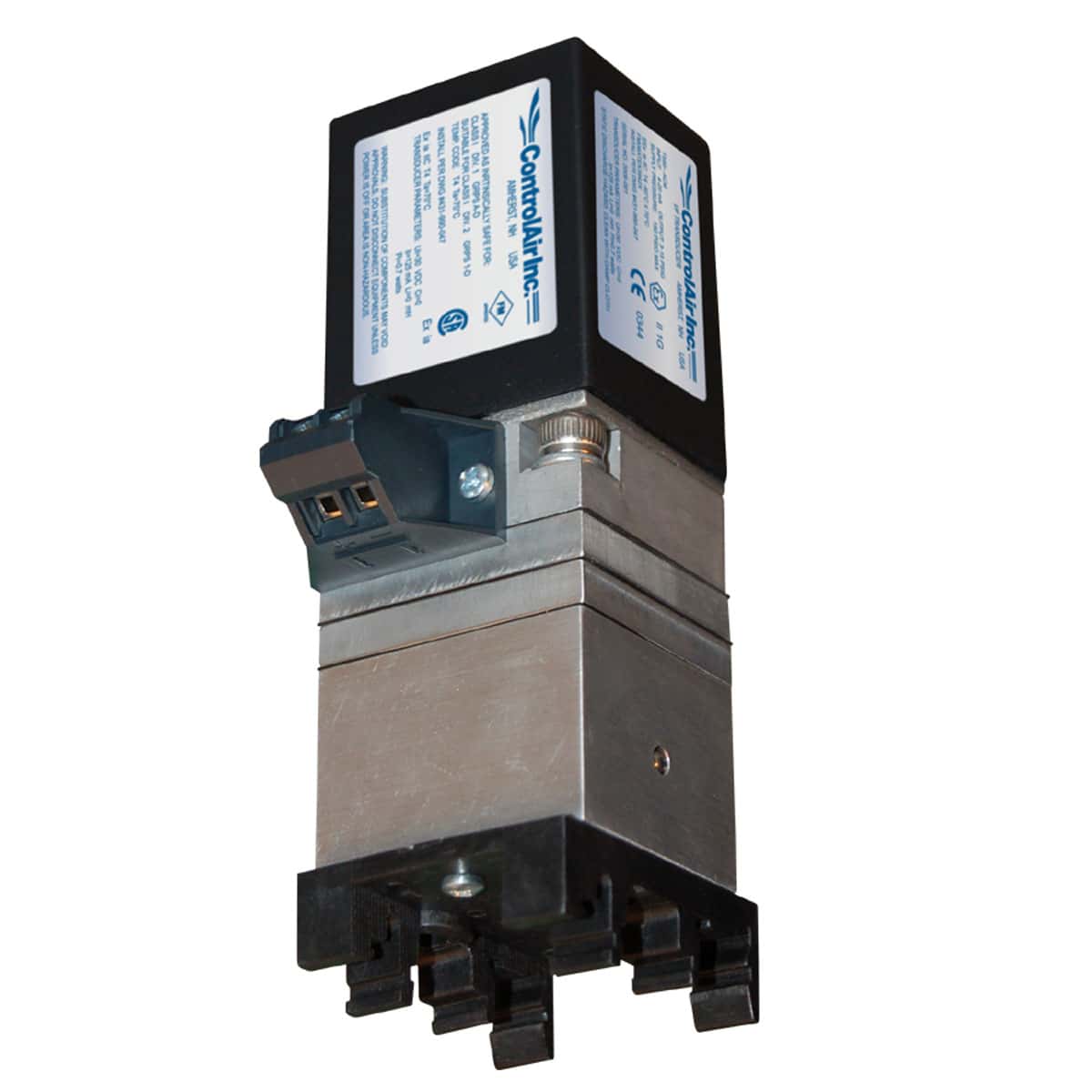

Type 590X I/P Transducer

The Type 590X I/P (current to pressure) transducer converts a variable electrical signal to a linearly proportional pneumatic output. The small size, light weight and immunity to shock and vibration make it ideal for use in process control applications.

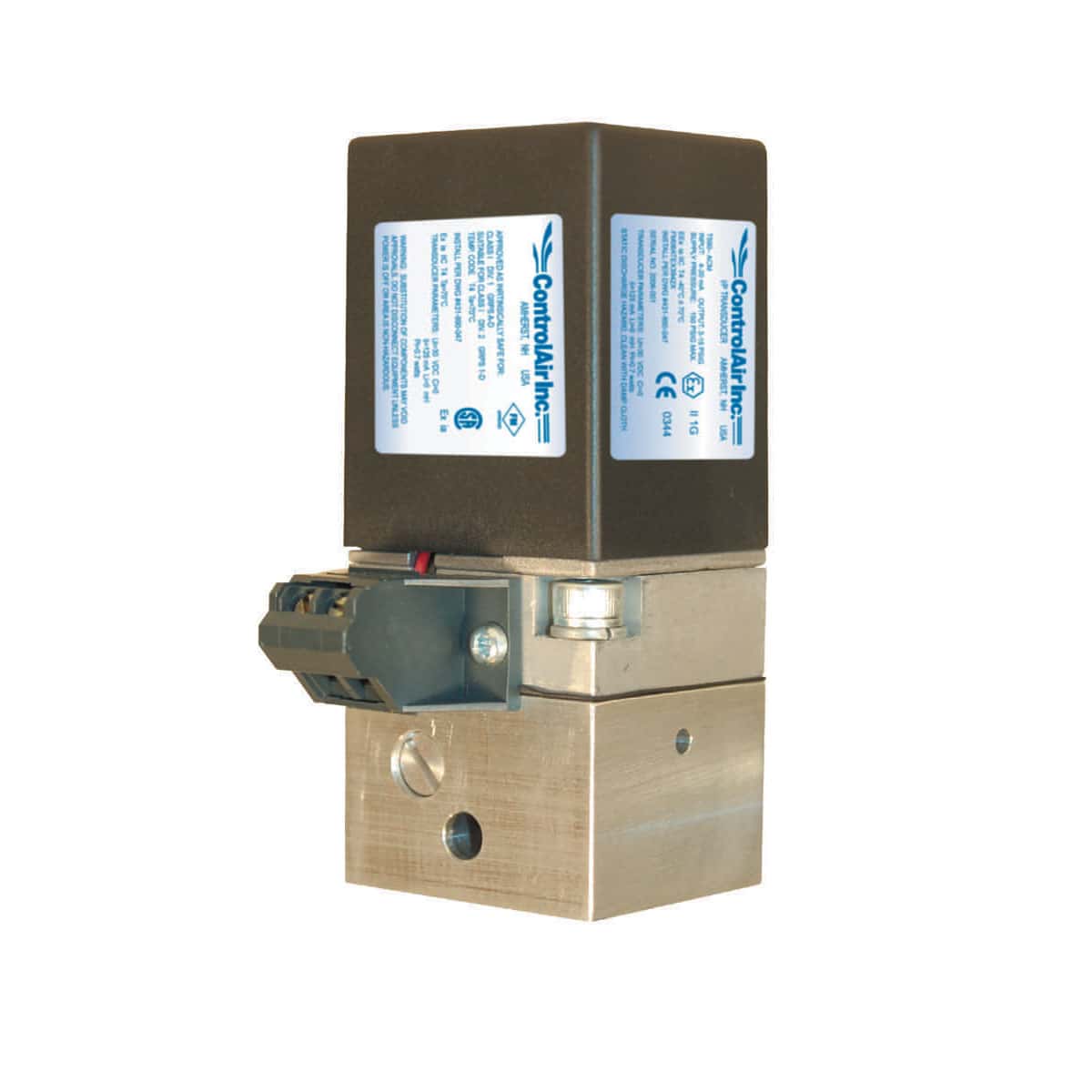

Type 590X Manifold Mount I/P Transducer

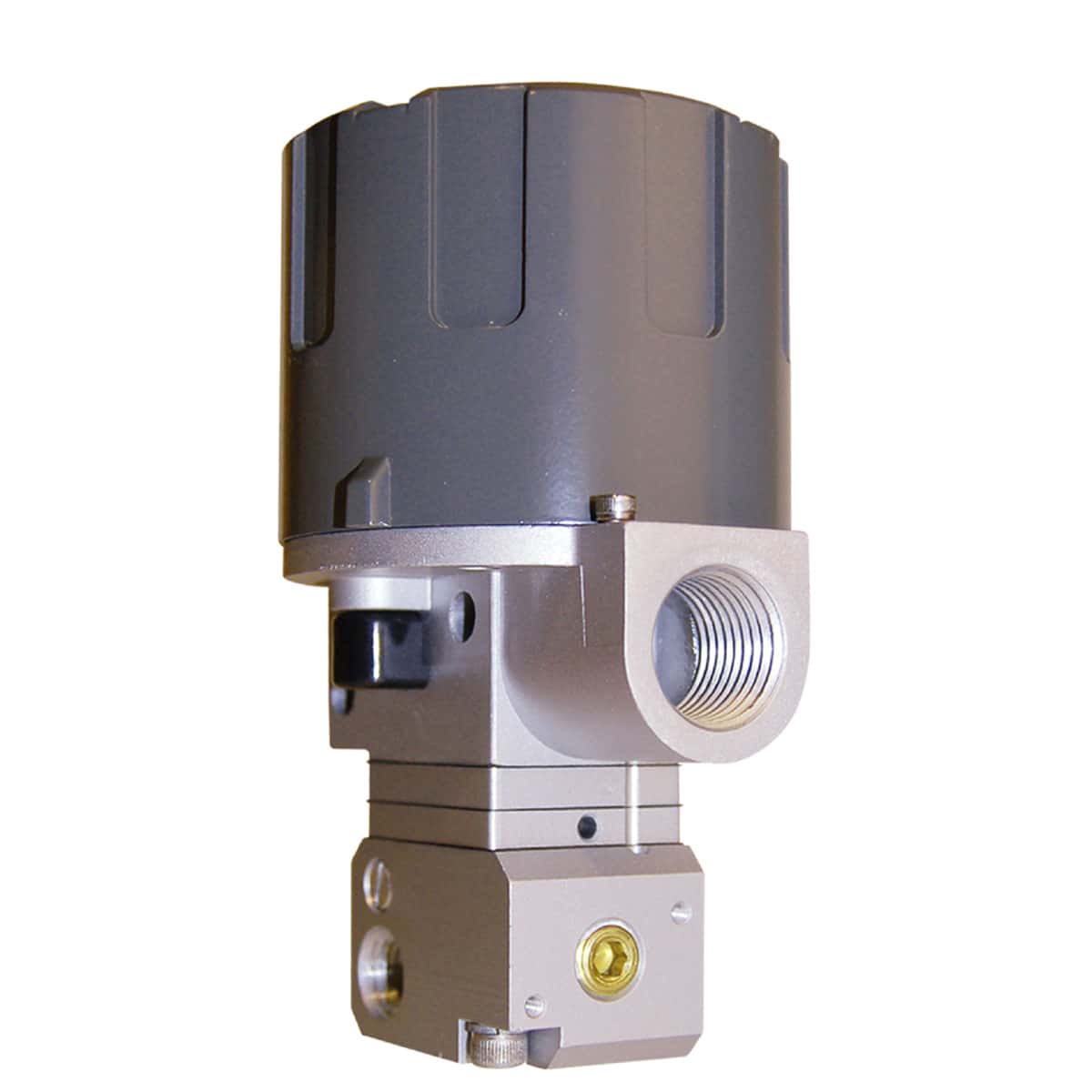

Type 595XP Explosion-Proof I/P Transducer

The Type 595XP Explosionproof I/P (current to pressure) transducer converts a 4–20mA electrical current signal to a proportionally linear pneumatic output. The unique conversion technology utilizing open loop control provides a high level of accuracy and repeatability for the operation of actuated valves. A low mass control circuit provides consistent output in high vibration applications.

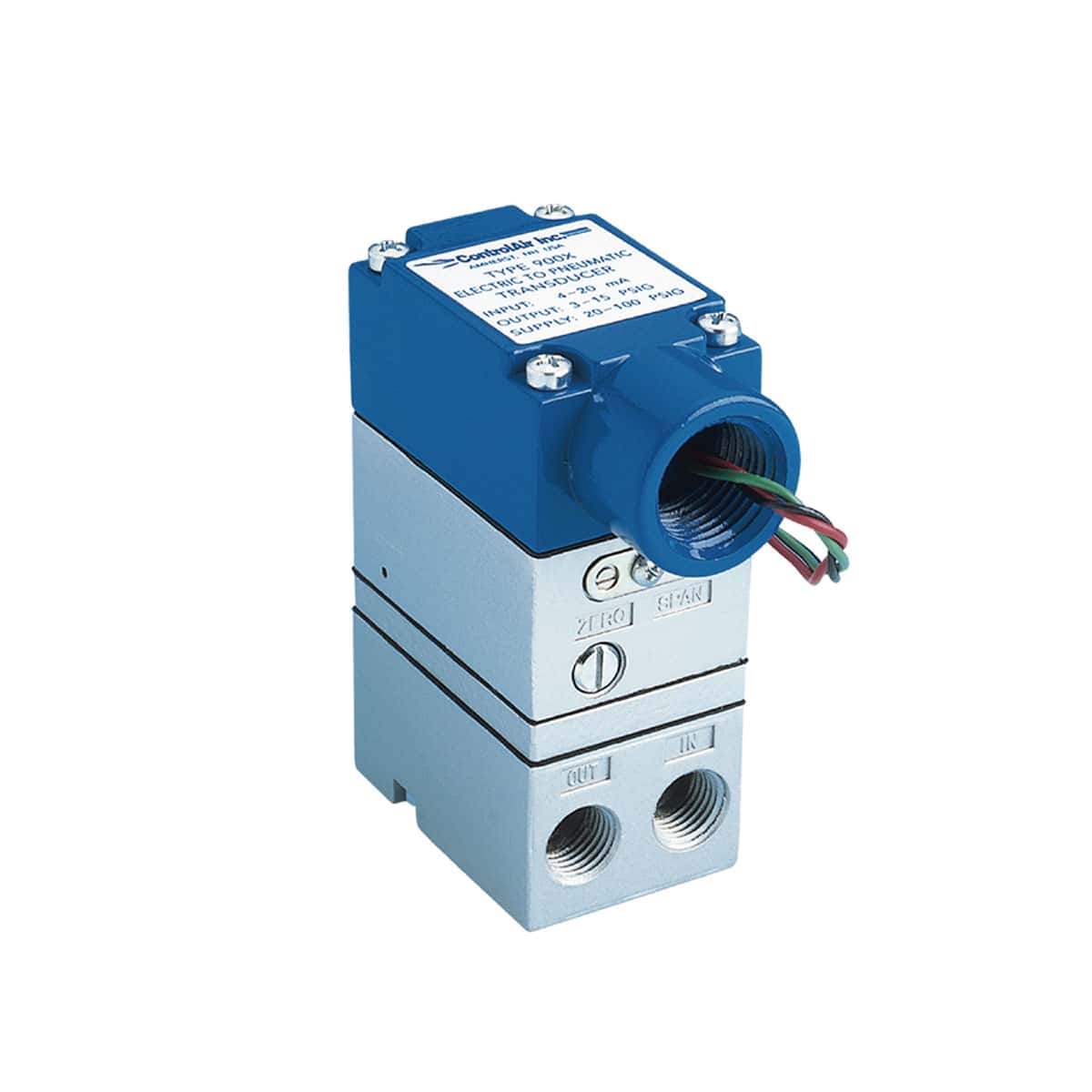

Type 900X Miniature I/P, E/P Transducer

The Type 900X l/P, E/P transducers are a series of compact electronic pressure regulators that convert an electrical signal (current or voltage) to a proportional pneumatic output. Utilizing internal solid-state feedback circuitry, the Type 900X provides precise, stable pressure outputs to final control elements.

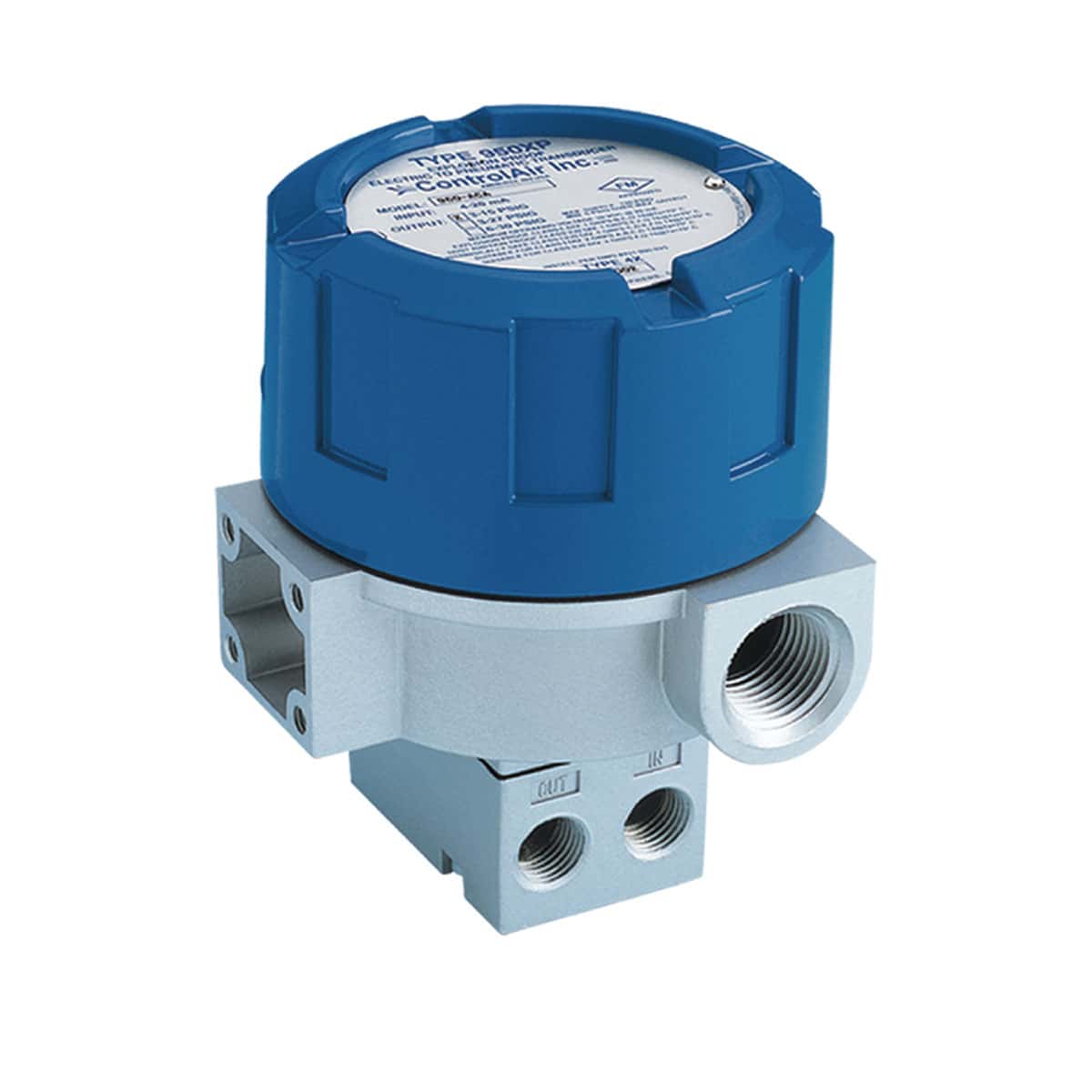

Type 950XP Explosion-Proof I/P Transducer

Process reliable and field rugged electronic pressure regulator

Now there’s a compact I/P transducer that delivers reliable high performance for the toughest applications in the most hazardous environments: the Type 950XP from ControlAir. The Type 950XP converts an electrical current signal to a stable, pneumatic output to actuate valves. Its NEMA 4X (IP65) housing is designed for both Intrinsically Safe* and Explosion-Proof* operation. Advanced circuitry includes electronic feedback control for superior vibration protection and highly accurate output.
